    SC7313
    4-CH OUTPUT STEREO AUDIO PROCESSOR WITH 3 STEREO INPUTS AND TONE/VOLUME CONTROL

    The SC7313 is a volume, tone (bass and treble), balance (left/right) and fader (front/rear) processor for quality audio applications in car radio and Hi-Fi systems. Selectable input gain and external loudness function are provided. Control is accomplished by serial I2C bus microprocessor interface. The AC signal settings is obtained by resistor networks and switches combined with operational amplifiers. Due to the used CMOS technology, low distortion, low noise and low DC stepping are obtained.



    Main feature

    Input multiplexer:

    • 3 stereo inputs

    • Selectable input gain

    Four speaker attenuators:

    • 4 independent speakers control in 1.25dB steps for balance and fader facilities

    • Independent mute function

    All functions programmable via serial I2C Bus

    Loudness function

    Volume control in 1.25dB steps

    Treble and bass control

    Input and output for external equalizer or noise reduction system




    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SC7313STR SOP-28-375-1.27 SC7313S Pb free Tape & Reel

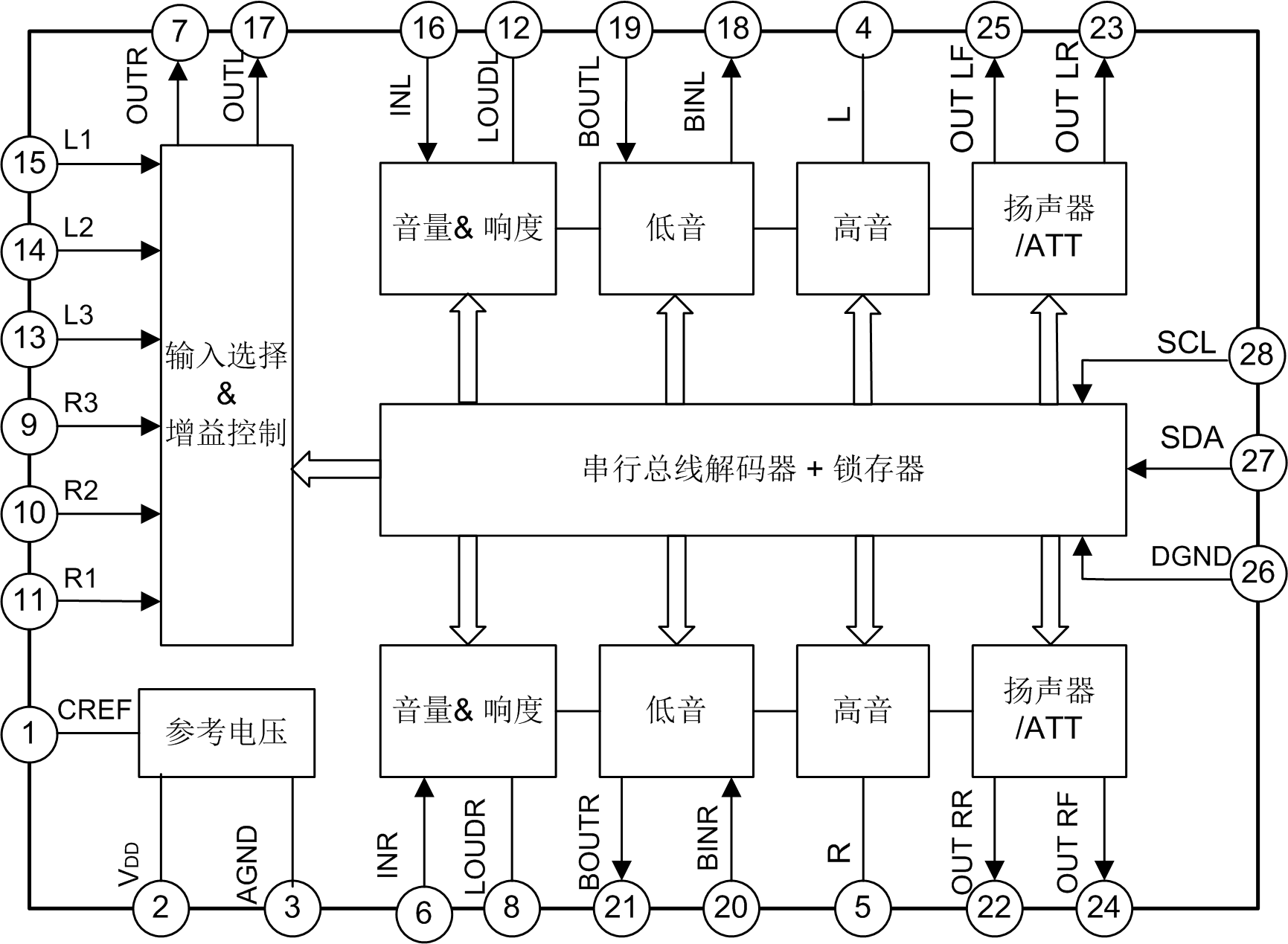

    Block Diagram
