SDM15C60TA2
600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

    SDM15C60TA2 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator. It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage.

    The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SDM15C60TA2 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


Main feature

  • Built-in low-loss 600V/15A IGBTs

  • Built-in high-voltage integrated circuit of gate driver

  • Built-in under voltage protections, over current protection and temperature output

  • Built-in shut-down input

  • Built-in inter-lock function

  • Built-in bootstrap diode with current limiting resistor

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminals for inverter current detection

  • Isolation rating: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM15C60TA2 DIP-25B SDM15C60TA2 Halogen free Tube

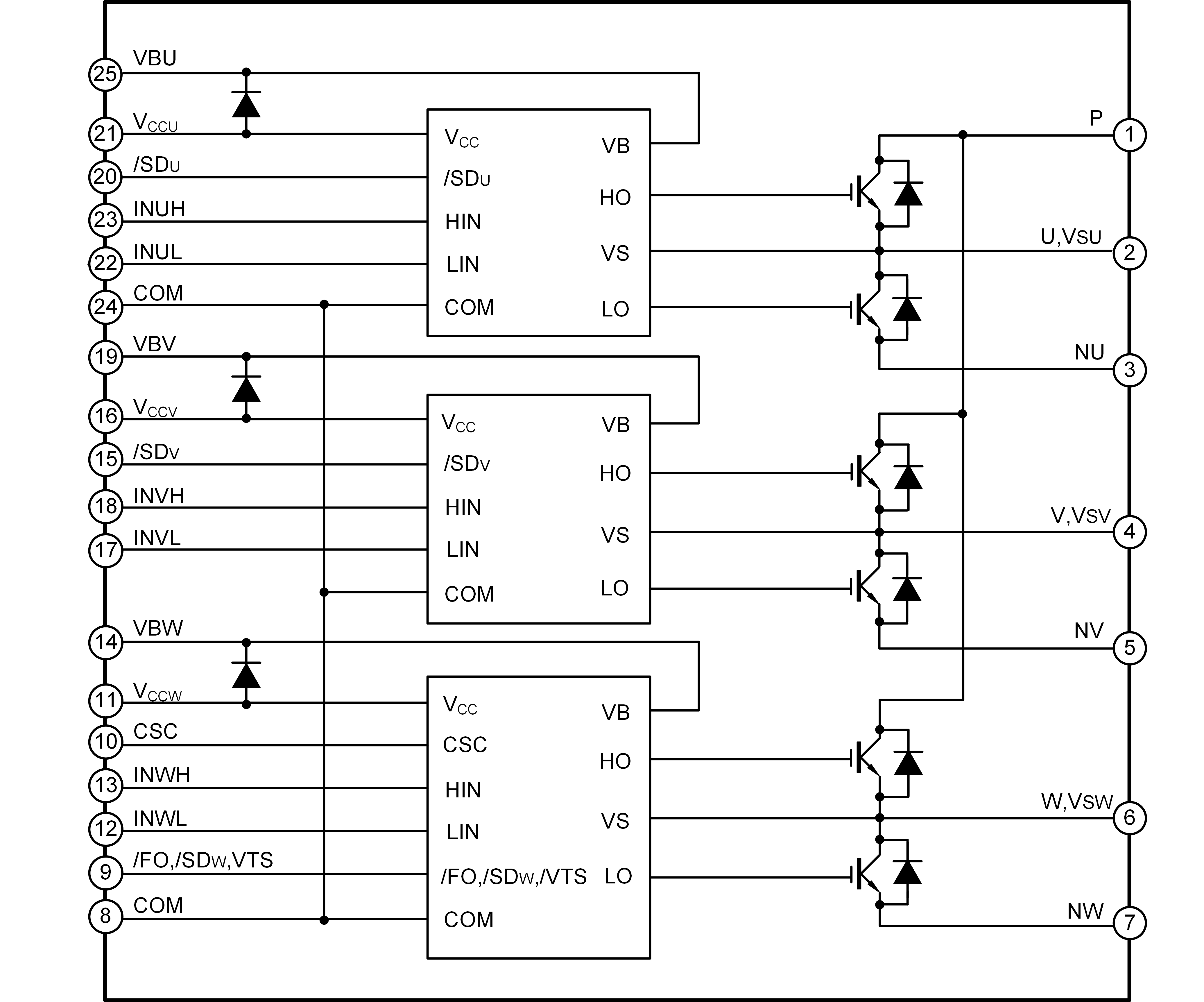

Block Diagram
