    SLP74LVTN16244B
    3.3V 16-BIT BUFFER WITH 3-STATE OUTPUTS

    The SLP74LVTN16244B is a 16-bit high performance bus buffer and line driver. The device is designed for 2.7V to 3.6V Vcc operation, but with the capability to provide TTL interface to a 5V system.

    The device has four groups of 4-bit independent line drivers with 3-state outputs. When the input of nOE—. is high, the associated 4-bit output is in the high-impedance state.


    Main feature

    • 16-bit bus buffer

    • Output capability: +64mA and -32mA

    • TTL input and output switching levels

    • Input and output interface capability to systems at 5V supply

    • Live insertion and extraction permitted

    • No bus current loading when output is tied to 5V bus

    • Power-up 3-state

    • ESD protection:

    • 2000-V Human-Body Model

    • 1000-V Charged-Device Model

    • Latch up performance: 100-mA

    • Specified from -40°C to +85°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVTN16244BJZ TSSOP-48-300-0.5 LVTN16244B Halogen free Tube
    SLP74LVTN16244BJZTR TSSOP-48-300-0.5 LVTN16244B Halogen free Tape & Reel

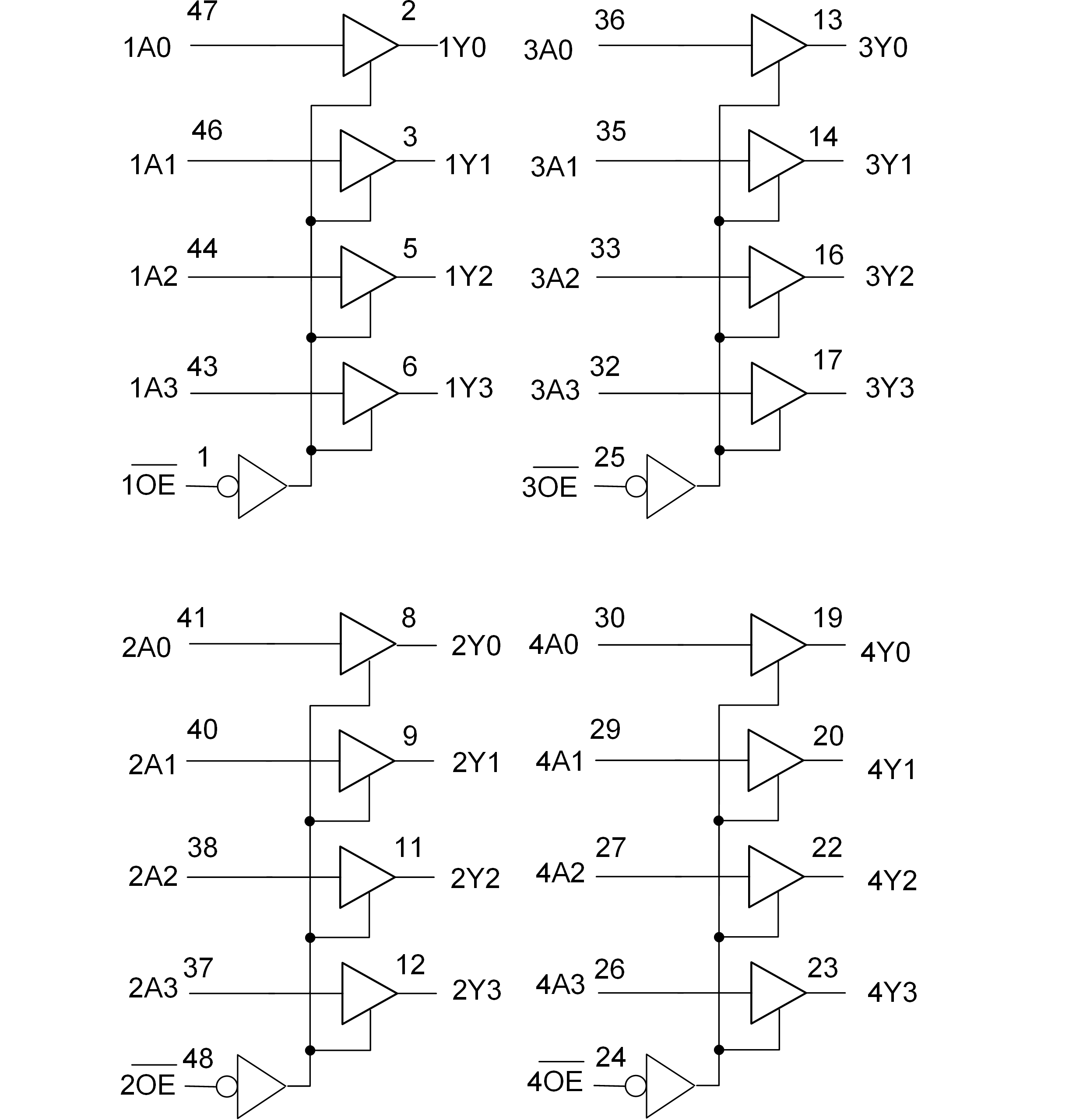

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74LVTN16244B 0 1970-01-01 SLP74LVTN16244B Brief Datasheet
