SDH790XDHT
NON-ISOLATED LED LIGHTING DRIVE IC WITH BUILT-IN HIGH-VOLTAGE MOSFET, HIGH PFC AND HIGH CONSTANT CURRENT ACCURACY

SDH790XDHT is designed for non-isolated LED driving with built-in high voltage power MOSFET and high voltage JFET. With this structure, inductor current is sensed and closed-loop is formed with the internal error amplifier for high constant current accuracy and high input/output regulation rate. Also, high PF in full range is available due to its own PFC control. Boundary Conduction mode is adopted for decreasing switching loss and improving the conversion efficiency.

SDH790XDHT can realize high power factor without any external integral capacitor.

Peripheral VCC pin and VCC capacitor (to GND) are unnecessary.

Over voltage protection threshold value is set through pin ROVP.

SDH790XDHT integrates various protections, such as output open circuit protection, output short circuit protection, cycle-by-cycle over current protection, and over temperature protection.

SDH790XDHT has ultra low start-up current and operating current, is able to high effectively drive highlight LED in full voltage input range.


Main feature

Proprietary constant control method (Patent)

High power factor without any external compensation capacitor (Patent)

Built-in high-voltage power supply

No peripheral VCC pin and VCC capacitor

Built-in high voltage power MOSFET and high voltage JFET

Constant current with high accuracy for LED (<±3%)

PF>0.9 in full voltage input range

Boundary-Conduction mode

LED short circuit protection

LED open circuit protection

Over current protection

Internal current reduction in high temperature condition


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDH7903DHT DIP-8A-300-2.54 / Halogen free Tube
SDH7904DHT DIP-8A-300-2.54 / Halogen free Tube

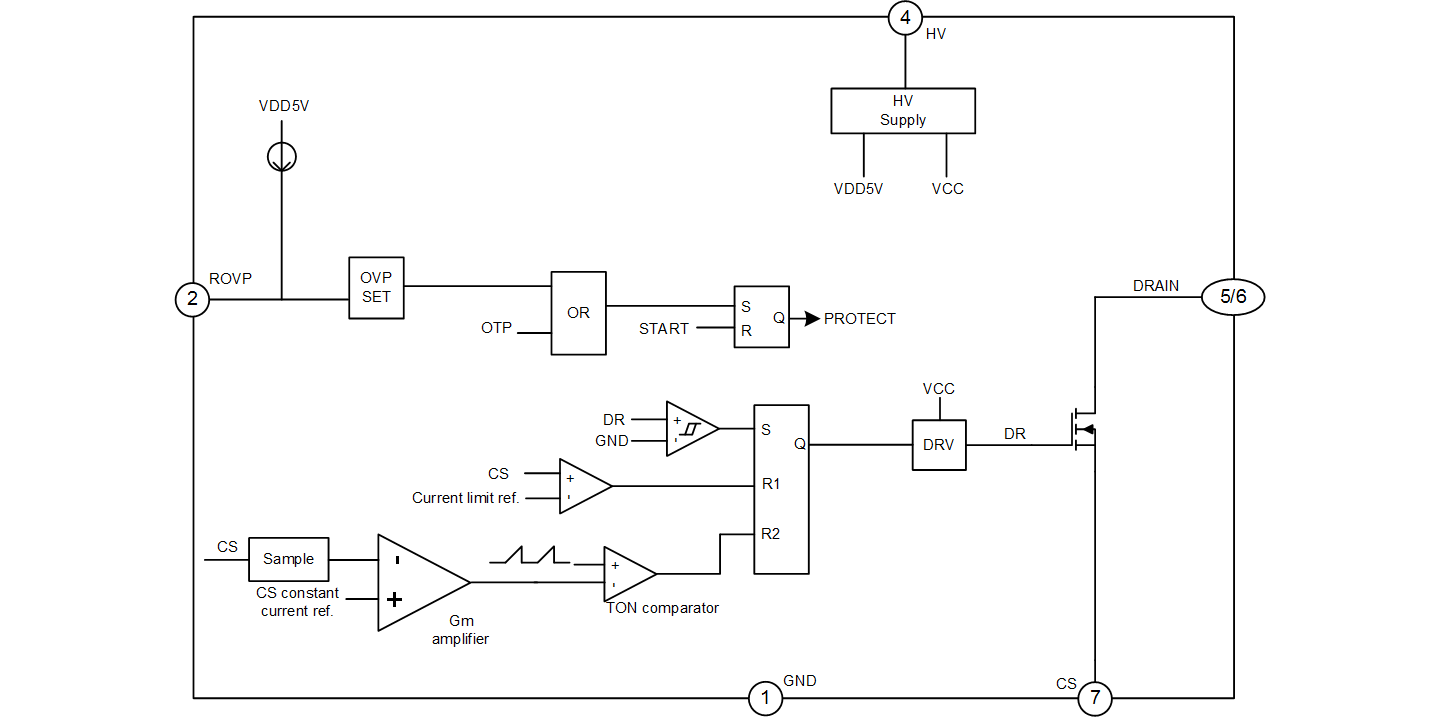

Block Diagram

SDH790XDHT 英文（1440&720）.png

Documents
title Types of Size (KB) date Download the latest English version
SDH790XDHT 0 1970-01-01 SDH790XDHT Brief Datasheet
