    NON-ISOLATED LED LIGHTING DRIVE IC WITH BUILT-IN HIGH-VOLTAGE MOSFET, HIGH PFC AND HIGH CONSTANT CURRENT ACCURACY

    SDH790XSHT is designed for non-isolated LED driving with built-in high voltage power MOSFET and high voltage JFET. With this structure, inductor current is sensed and closed-loop is formed with the internal error amplifier for high constant current accuracy and high input/output regulation rate. Also, high PF in full range is available due to its own PFC control. Boundary Conduction mode is adopted for decreasing switching loss and improving the conversion efficiency.

    SDH790XSHT can realize high power factor without any external integral capacitor.

    Peripheral VCC pin and VCC capacitor (to GND) are unnecessary.

    Over voltage protection threshold value is set through pin ROVP.

    SDH790XSHT integrates various protections, such as output open circuit protection, output short circuit protection, cycle-by-cycle over current protection, and over temperature protection.

    SDH790XSHT has ultra low start-up current and operating current, is able to high effectively drive highlight LED in full voltage input range.


    Main feature

    Proprietary constant control method (Patent)

    High power factor without any external compensation capacitor (Patent)

    Built-in high-voltage power supply

    No peripheral VCC pin and VCC capacitor

    Built-in high voltage power MOSFET and high voltage JFET

    Constant current with high accuracy for LED (<±3%)

    PF>0.9 in full voltage input range

    Boundary-Conduction mode

    LED short circuit protection

    LED open circuit protection

    Over current protection

    Internal current reduction in high temperature condition


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDH7902SHT SOP-7-225-1.27 7902SHT Halogen free Tube
    SDH7902SHTTR SOP-7-225-1.27 7902SHT Halogen free Tape&Reel
    SDH7903SHT SOP-7-225-1.27 7903SHT Halogen free Tube
    SDH7903SHTTR SOP-7-225-1.27 7903SHT Halogen free Tape&Reel

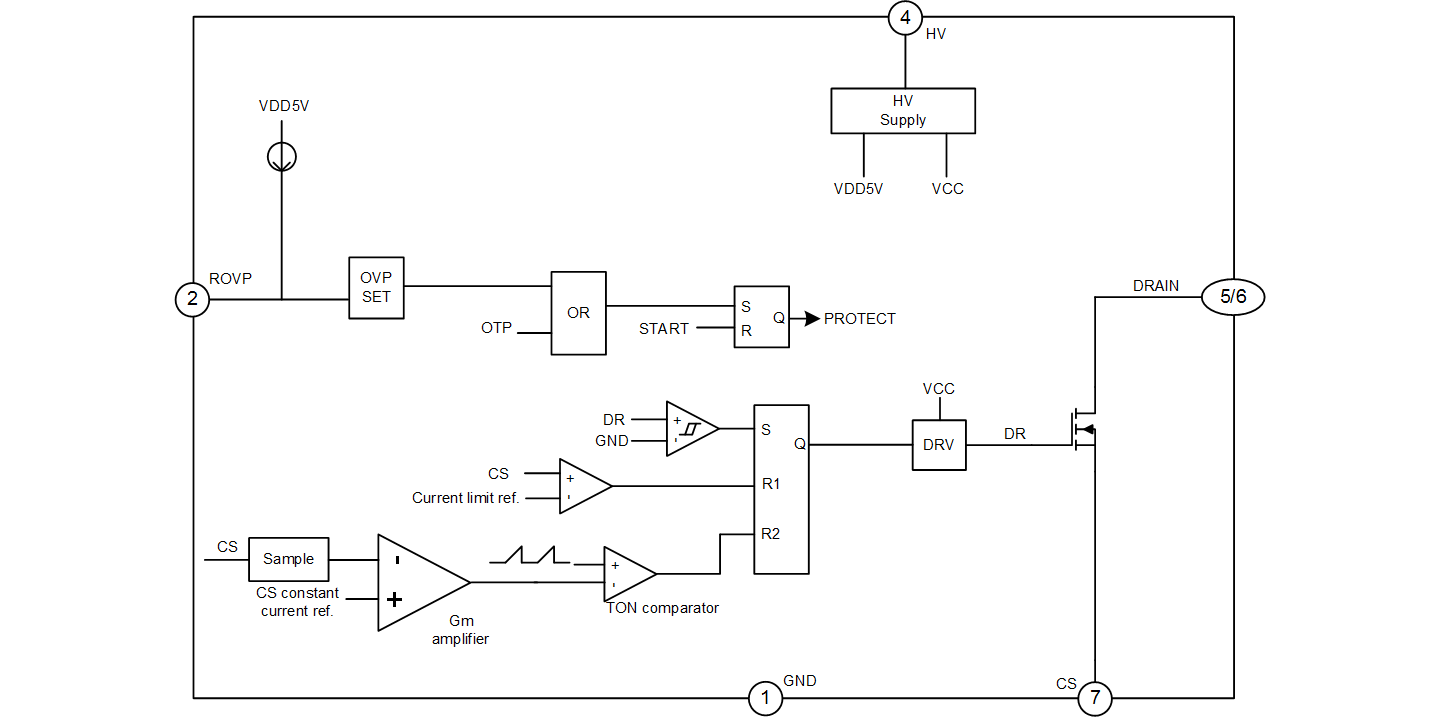

    Block Diagram

    SDH790XSHT 英文（1440&720）.png

    Documents
    title Types of Size (KB) date Download the latest English version
    SDH790XSHT 0 1970-01-01 SDH790XSHT Brief Datasheet
