    SLP74LVC3G04
    TRIPLE INVERTER

        The SLP74LVC3G04 is triple inverter.

        This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


    Main feature

    • 5V tolerant input/output for interfacing with 5V logic

    • Balanced propagation delays

    • Wide supply voltage range from 1.65V to 5.5V

    • ±24mA output drive (VCC=3.0V)

    • ESD protection:

    • HBM Exceeds 2000V

    • CDM Exceeds 1000V

    • Latch-up performance exceeds 100mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC3G04JWTR VSSOP-8-100-0.5 3G04 Halogen free Tape & Reel

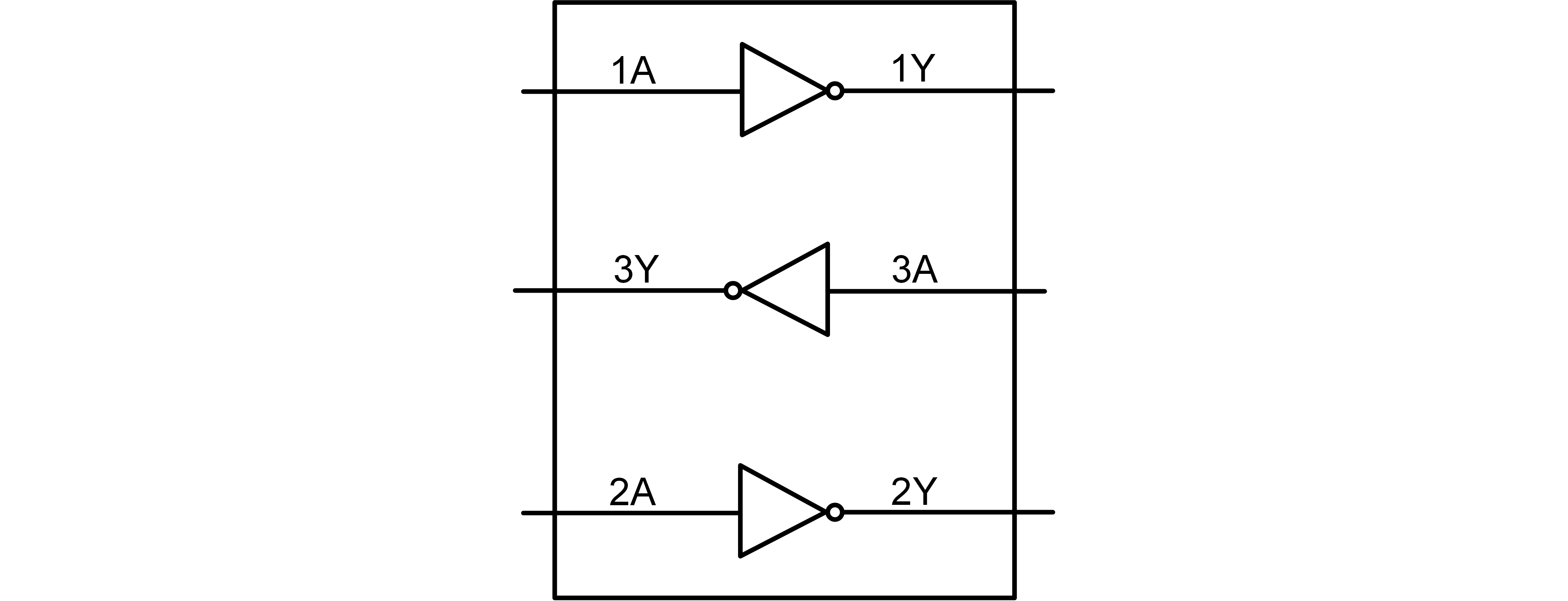

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74LVC3G04 0 1970-01-01 SLP74LVC3G04 Brief Datasheet
