      SLP74AVC2T45
      2-BIT DUAL-SUPPLY TRANSCEIVER WITH VOLTAGE LEVEL TRANSLATOR AND 3-STATE OUTPUTS

            The SLP74AVC2T45 is a 2-bit non-inverting bus transceiver uses two separate configurable power-supply rails. It features two data input-output ports(nA and nB), a direction control input(DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8V and 3.6V making the device suitable for translating between any of the low voltage nodes(0.8V, 1.2V, 1.5V, 1.8V,  2.5V and 3.3V). Pins nA and DIR are referenced to VCC(A) and pins nB are referenced to VCC(B).

            The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down.

      When either VCC(A) or VCC(B) are at GND level, both A and B are in the high-impedance OFF-state.


      Main feature

      • Wide supply voltage range:

      • VCC(A): 0.8V to 3.6V

      • VCC(B): 0.8V to 3.6V

      • I/Os are 3.6V Tolerant

      • IOFF circuitry provides partial Power-down mode operation

      • Maximum data rates:

      • 300 Mbps (1.8V to 3.3V translation)

      • 220 Mbps (<1.8V to 3.3V translation)

      • 200 Mbps (translate to 2.5V or 1.8V)

      • 150 Mbps (translate to 1.5V)

      • 100 Mbps (translate to 1.2V)

      • ESD protection:

      • HBM Exceeds 8000V

      • CDM Exceeds 1000V

      • Latch-up performance exceeds 100mA

      • Specified from -40°C to +85°C and -40°C to +125°C


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

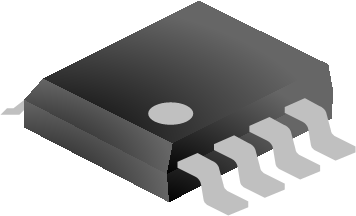

      SLP74AVC2T45JMTR MSOP-8-185-0.65 AC2T45 Halogen free Tape & Reel
      SLP74AVC2T45JQTR TSSOP-8N-150-0.65 A2T45 无卤 编带

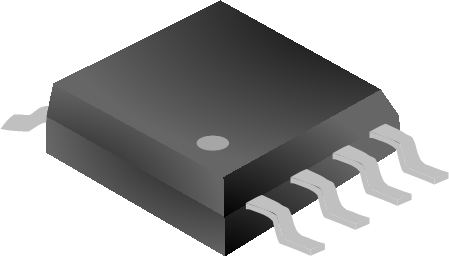

      SLP74AVC2T45JWTR VSSOP-8-100-0.5 2T45 Halogen Free Tape & Reel

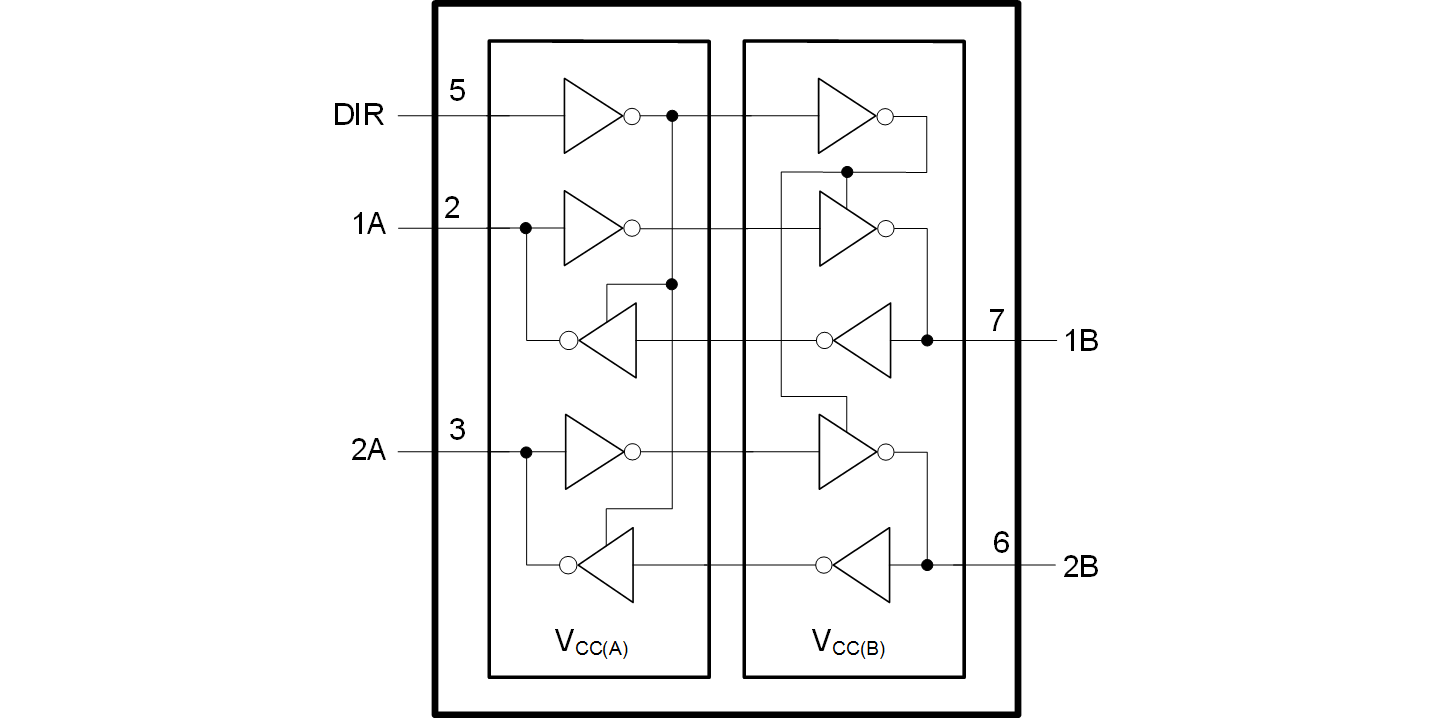

      Block Diagram

      SLP74AVC2T45 中英文同(1440&720).png

      Documents
      title Types of Size (KB) date Download the latest English version
      SLP74AVC2T45 0 1970-01-01 SLP74AVC2T45 Brief Datasheet
