      SLP74AHCT541
      OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

          The SLP74AHCT541 is octal buffer/line driver with 3-state outputs.

          The 3-state control gate is a two-input AND gate with active-low inputs so that if either output-enable (OE(———0 or OE(———1) input is high, all corresponding outputs are in the high-impedance state. The outputs provide non inverted data when they are not in the high-impedance state.


      Main feature

      • Inputs accept voltages higher than VCC

      • Balanced propagation delays

      • TTL input levels

      • ESD protection:

      • HBM Exceeds 2000V

      • CDM Exceeds1000V

      • Latch-up performance exceeds 100mA

      • Specified from -40°C to +85°C and from -40°C to +125°C


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

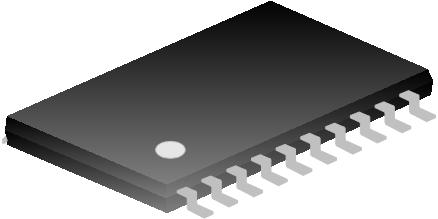

      SLP74AHCT541JT TSSOP-20-225-0.65 AHCT541 Halogen free Tube
      SLP74AHCT541JTTR TSSOP-20-225-0.65 AHCT541 Halogen free Tape & Reel

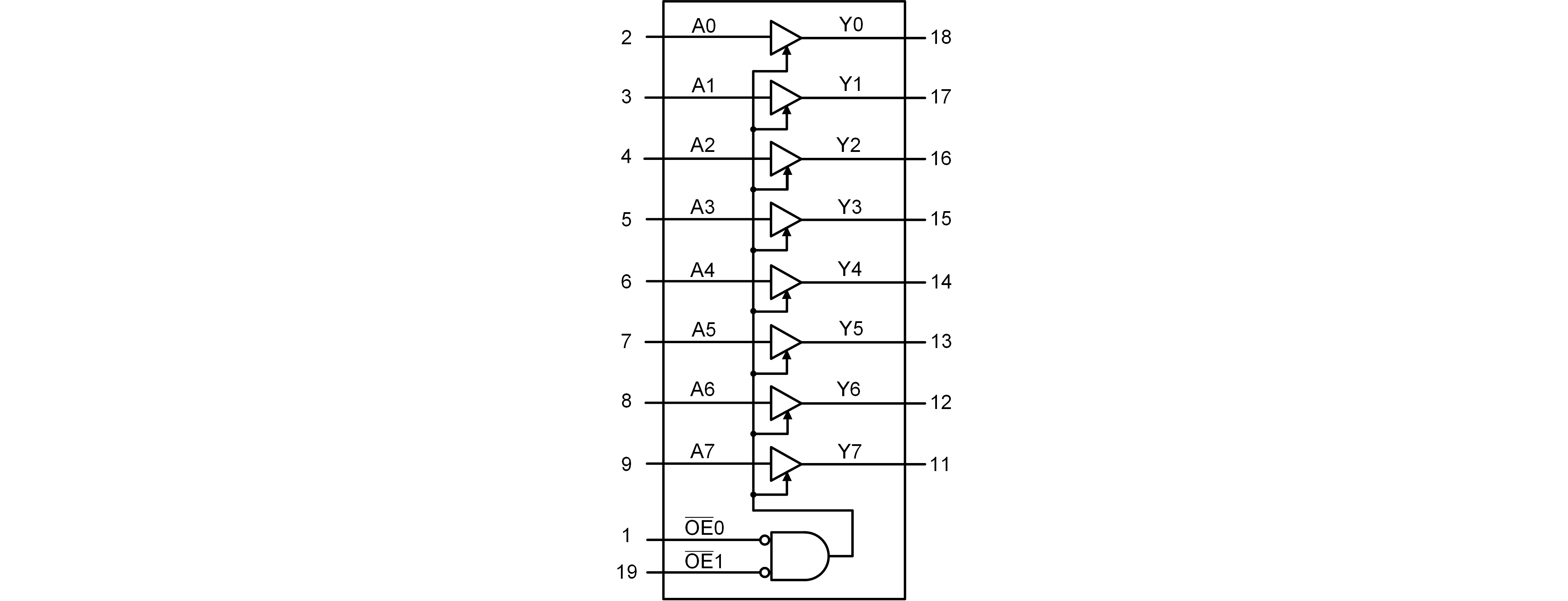

      Block Diagram


      Documents
      title Types of Size (KB) date Download the latest English version
      SLP74AHCT541 0 1970-01-01 SLP74AHCT541 Brief Datasheet
