         The SLP74AHCT1G125 are Si-gate CMOS devices.

         The SLP74AHCT1G125 provide one non-inverting buffer/line driver with 3-state output. A HIGH at OE causes the output to assume a high-impedance OFF-state.


    Main feature
    • Balanced propagation delays

    • TTL input levels

    • ESD protection:

    • HBM Exceeds 2000V

    • CDM Exceeds 1000V

    • Latch-up performance exceeds 100mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74AHCT1G125KMTR SOT-353-5L SH Halogen free Tape & Reel
    SLP74AHCT1G125KBTR SOT-23-5L HG25 Halogen free Tape & Reel

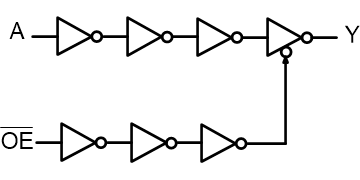

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74AHCT1G125 0 1970-01-01 SLP74AHCT1G125 Brief Datasheet
