    SDM20G60FC8
    600V/20A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

        SDM20G60FC8 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air conditioner, industrial server and low power inverter. It has embedded six low-loss IGBTs and 3-phase full-bridge gate drivers with high voltage.

        The under voltage and short circuit protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

        SDM20G60FC8 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


    Main feature

    • Built-in low-loss 600V/20A IGBT

    • Built-in high-voltage integrated circuit of gate driver

    • Built-in under voltage protection, over current protection and temperature output

    • Built-in bootstrap diode with current limiting resistor

    • Compatible with 3.3V, 5V MCU interface, active high

    • Three independent negative DC terminal for inverter current detection

    • Alarm signal: for low-side under voltage, over temperature and short circuit protections

    • Very low thermal resistance using Al2O3 DBC substrate

    • Insulation level: 1500Vrms/min


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDM20G60FC8 DIP-24HL SDM20G60FC8 Halogen free Tube

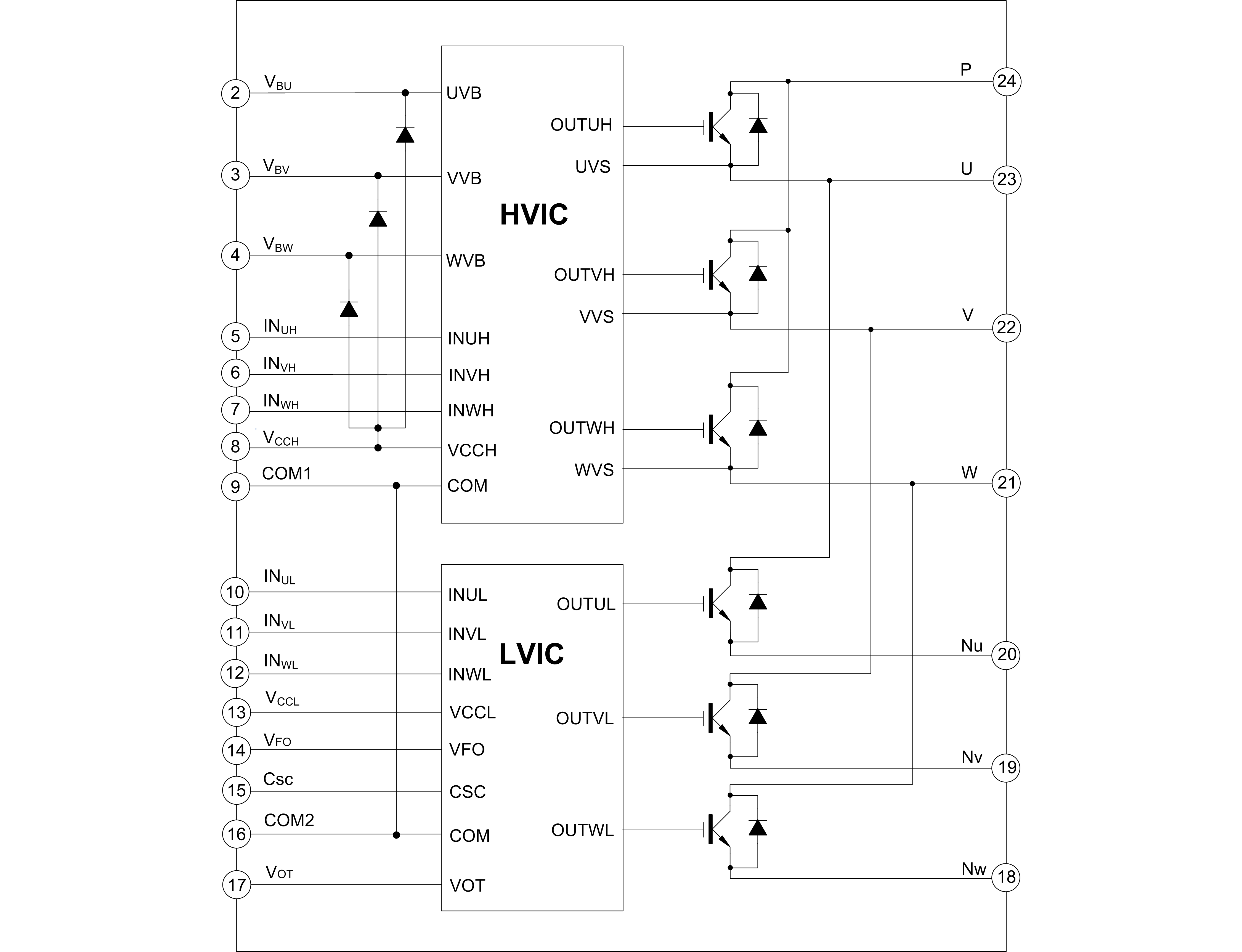

    Block Diagram
