SAP224
QUADRUPLE OPERATIONAL AMPLIFIERS

The SAP224 consist of four independent, high-gain, frequency- compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground.

Low Input Bias and Offset Parameters.


Main feature

  • Wide Single−Supply Range: 3V~32V

  • Low Supply-Current Drain, 0.8mA Typ

  • Common-mode input voltage range includes ground

  • Low Input Bias and Offset Parameters

  • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 32V

  • Open-Loop Differential Voltage Amplification: 100V/mV

  • Internal Frequency Compensation


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SAP224SB SOP-14-225-1.27 SAP224SB Halogen free Tube
SAP224SBTR SOP-14-225-1.27 SAP224SB Halogen free Tape&Reel

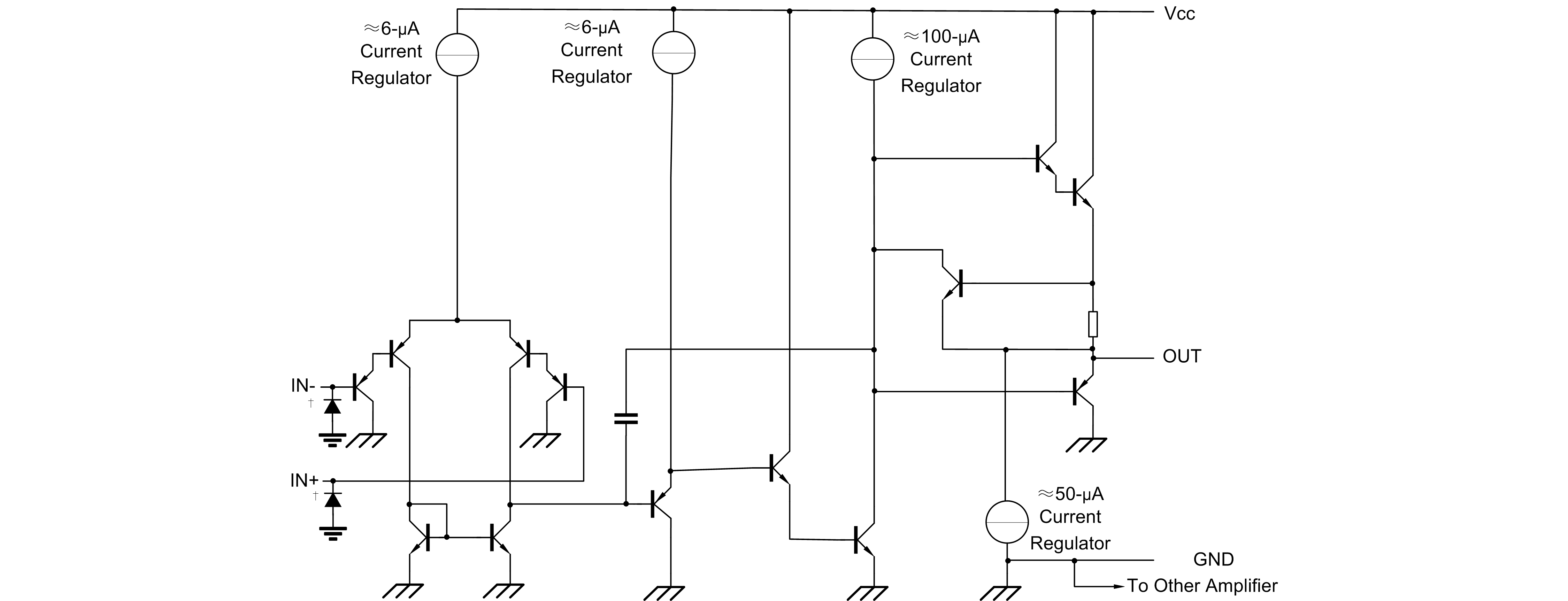

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SAP224 0 1970-01-01 SAP224 Datasheet
