    SDM15L60RA

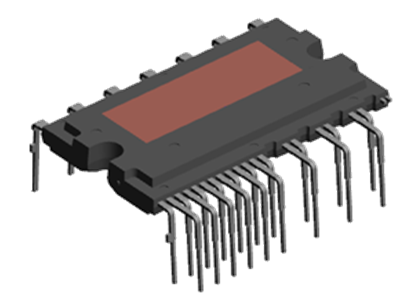

    600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

        SDM15L60RA is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air conditioner, refrigerator and dishwasher. It has embedded six low-loss IGBTs and 3-phase full-bridge gate drivers with high voltage.

        The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

        SDM15L60RA uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


    Main feature

    • Built-in low-loss 600V/15A RC IGBT

    • Built-in high-voltage integrated circuit of gate driver

    • Built-in under voltage protection, over temperature protection, over current protection and temperature output

    • Built-in bootstrap diode with current limiting resistor

    • Compatible with 3.3V, 5V MCU interface, active high

    • Three independent negative DC terminal for inverter current detection

    • Alarm signal: for low-side under voltage, over temperature and short circuit protections

    • Very low thermal resistance using Al2O3 DBC substrate

    • Insulation level: 2000Vrms/min


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDM15L60RA SDIP-26A SDM15L60RA Halogen Free Tube

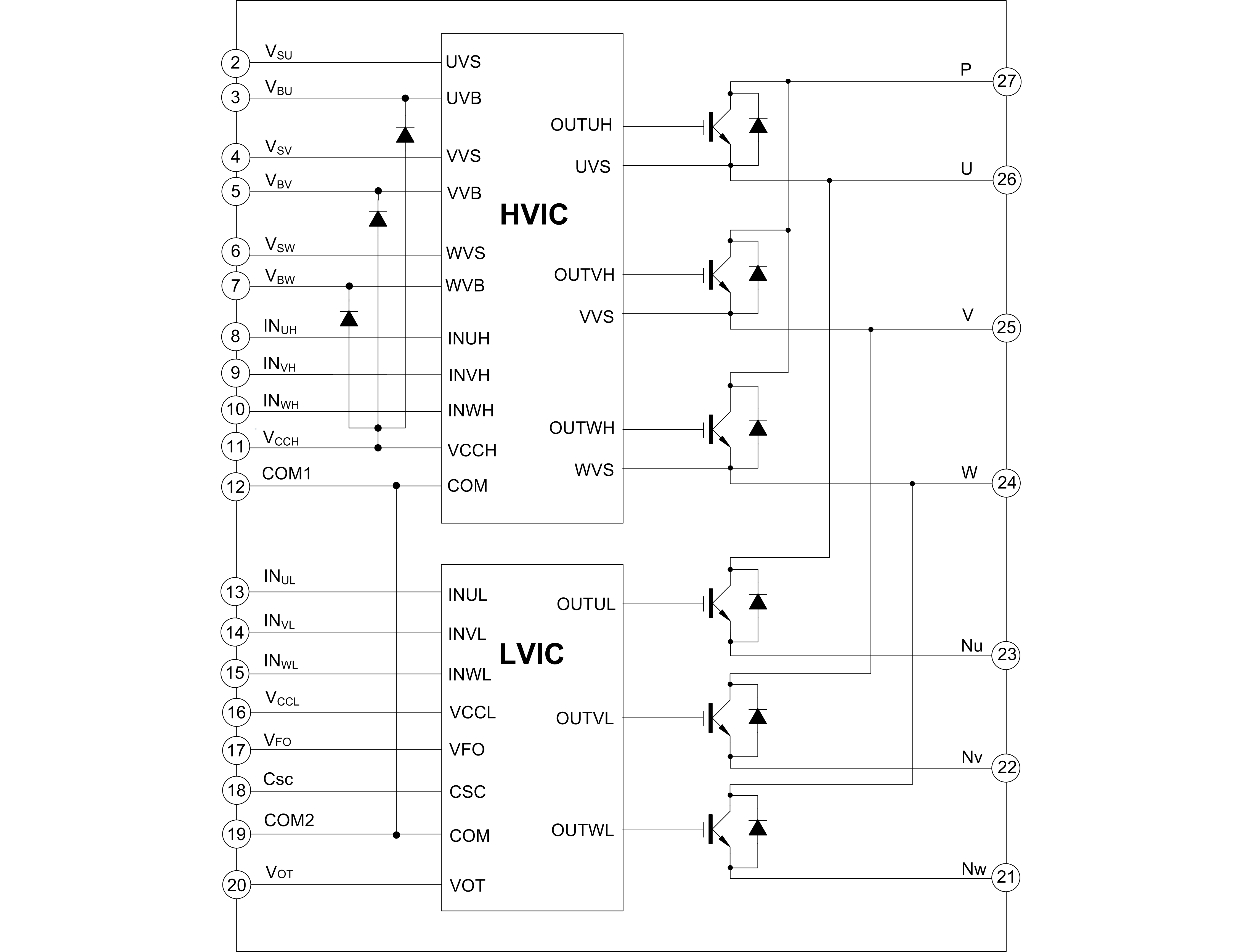

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SDM15L60RA 0 1970-01-01 SDM15L60RA Brief Datasheet
