      SAP082B
      DUAL OPERATIONAL AMPLIFIERS

      The SAP082B consist of two independent, high-voltage JFET-input, frequency-compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 10V to 30V.

      The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient.


      Main feature

      • Wide Single−Supply Range: 10V~30V

      • Wide Common-Mode and Differential Voltage Ranges

      • Low Input Bias and Offset Currents

      • High-Input Impedance: JFET Input Stage

      • Common-Mode Input Voltage Range Includes VCC+

      • Internal Frequency Compensation


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SAP082BSA SOP-8-225-1.27 SAP082 Halogen free Tube
      SAP082BSATR SOP-8-225-1.27 SAP082 Halogen free Tape&Reel

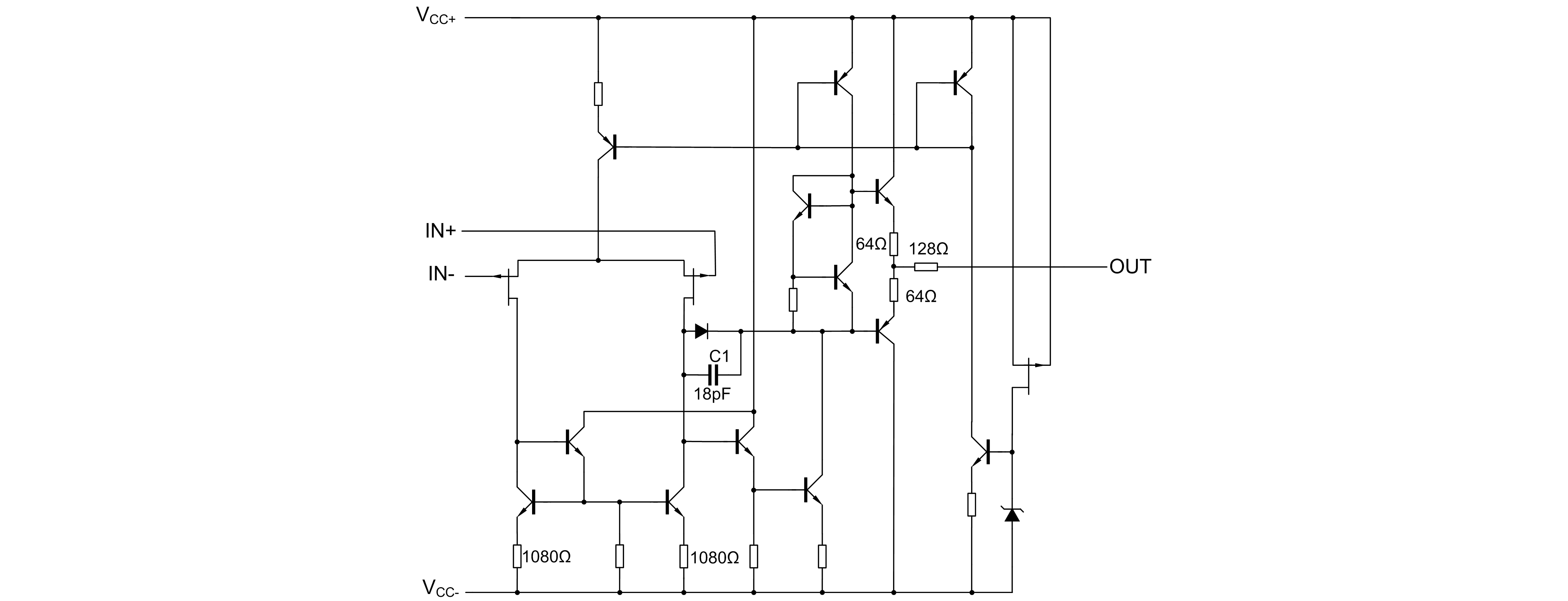

      Block Diagram

      SAP082B .png

      Documents
      title Types of Size (KB) date Download the latest English version
      SAP082B 0 1970-01-01 SAP082B Datasheet
