    SLP74LVC1G125
    BUS BUFFER/LINE DRIVER; 3-STATE


          The SLP74LVC1G125 provides one non-inverting buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (OE(————）. The output is disabled when the output-enable  (OE————） input is high.

         This bus buffer gate is designed for 1.65V to 5.5V VCC operation.

         This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


    Main feature

    • Supports 1.65V to 5.5V VCC operation

    • Input accept voltages up to 5V

    • ±24mA output drive (VCC=3.0V)

    • CMOS low power consumption

    • ESD protection:

    • HBM exceeds 2000 V

    • CDM exceeds 1000 V

    • Latch-up performance exceeds 100 mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC1G125KMTR SOT-353-5L SN Halogen free Tape & Reel
    SLP74LVC1G125KBTR SOT-23-5L VG25 Halogen free Tape & Reel

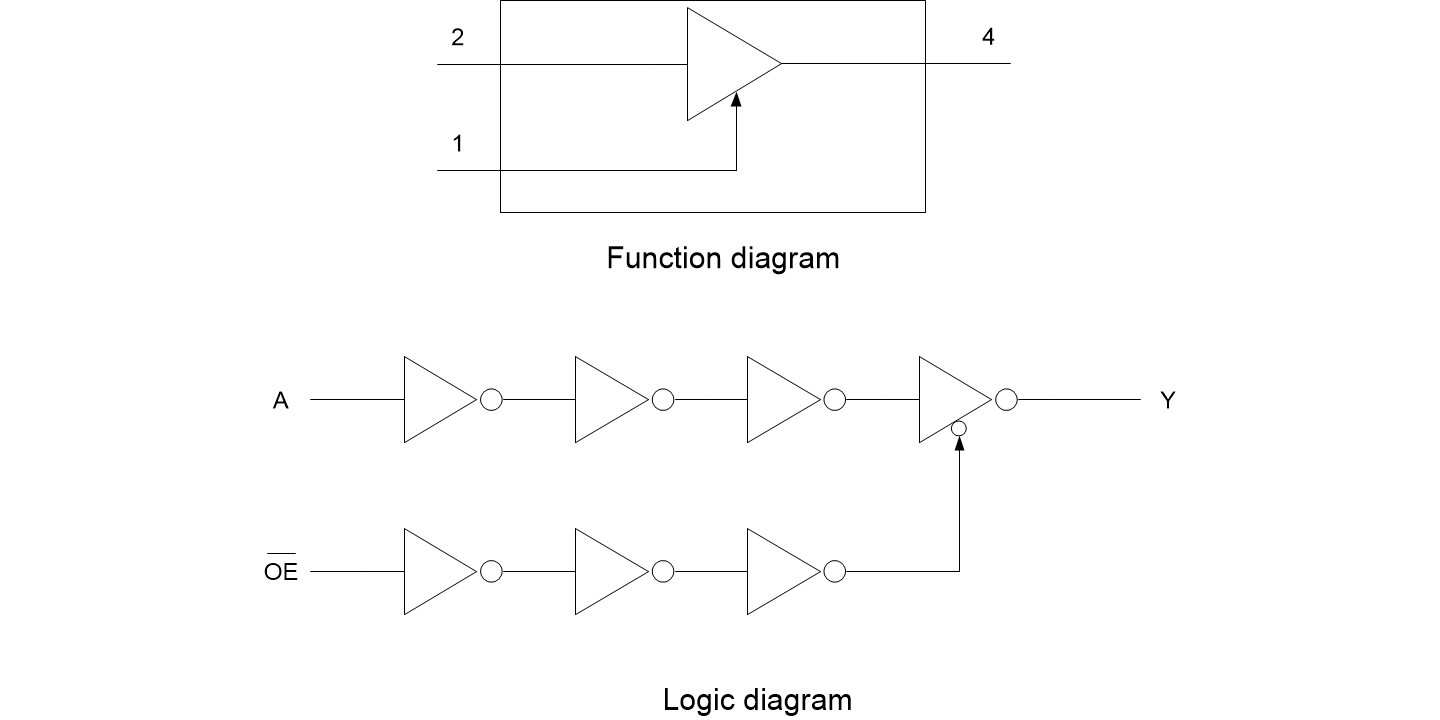

    Block Diagram

    SLP74LVC1G125 （1440&720）.png



    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74LVC1G125 0 1970-01-01 SLP74LVC1G125 Brief Datasheet
