    HIGH PRECISION CC/CV PRIMARY SIDE POWER CONTROLLER WITH BUILT-IN MOSFET

        SDH8595AS is offline PSR power controller which operates in PFM to achieve high performance and high efficiency. It integrates a 600V MOSFET and has high-voltage startup function . Both the output current and voltage are sensed by primary side.

        SDH8595AS removes the need for optocoupler & TL431 while achieving excellent line and load regulation. It also eliminates the need for loop compensation while maintaining stability over all operation conditions.

        SDH8595AS supports applications up to 15W.

    Main feature

    • Primary-side Feedback Eliminates Opto-isolators and Simplifies Design

    • High Precision Constant Voltage and Current Regulation at Universal AC Input

    • Programmable CV and CC Regulation

    • Programmable Cable Drop Compensation

    • Integrated 600V MOSFET

    • Integrated High-Voltage Startup

    • Low Standby Power

    • Built-in Line Voltage and Primary Winding Inductance Compensation

    • Built-in Leading Edge Blanking(LEB)

    • PFM Operation for Efficiency Improving

    • Comprehensive Protection Coverage with Auto-recovery

    • On-chip OTP

    • VCC Over Voltage Protection

    • VCC Under Voltage Lockout with Hysteresis(UVLO)

    • Cycle-by-Cycle Current Limiting

    • Output Short Circuit Protection

    • Maximum on time protection


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDH8595ASTR SOP-7-225-1.27 SDH8595AS Halogen free Tape & Reel
    SDH8595AS SOP-7-225-1.27 SDH8595AS Halogen free Tube

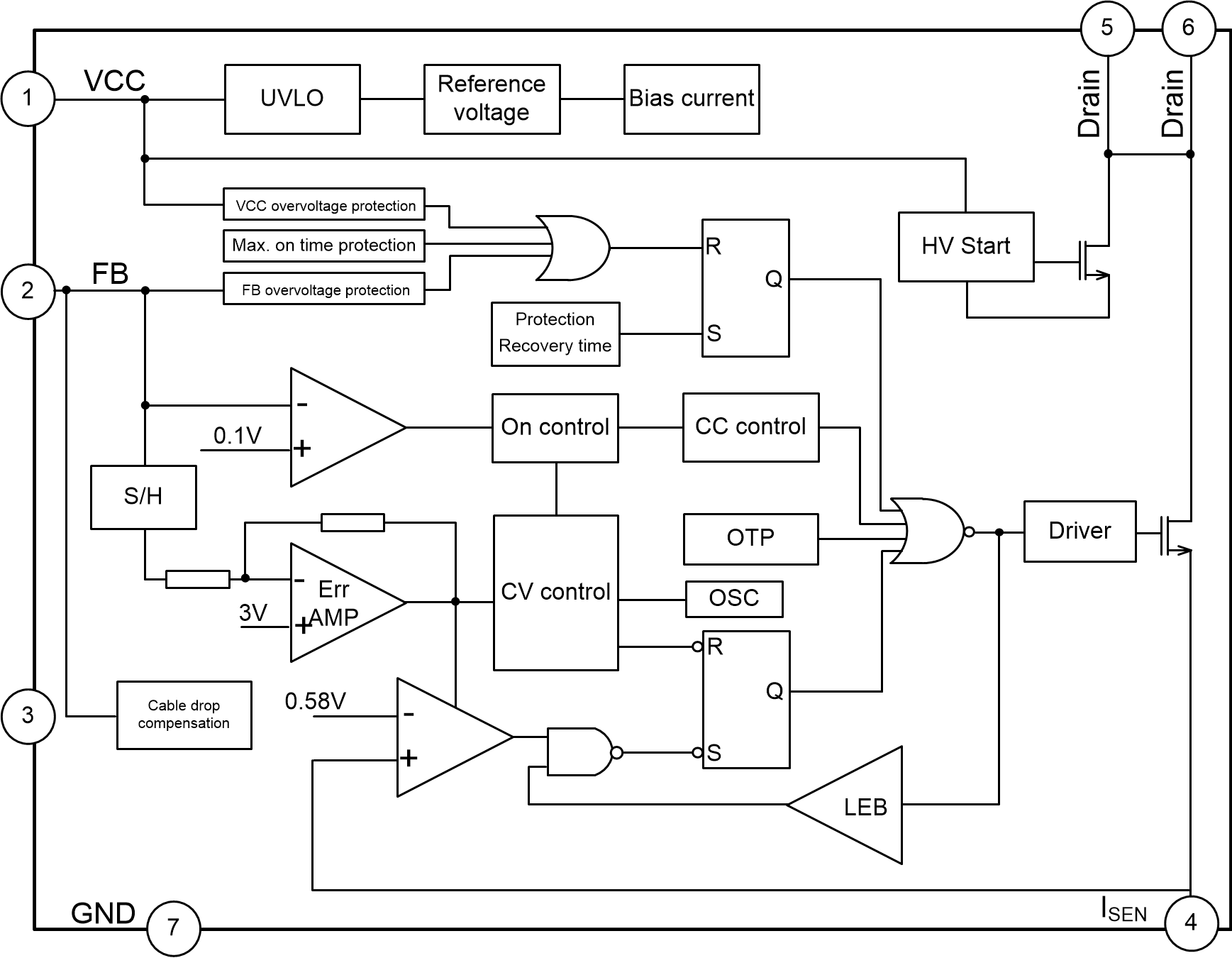

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SDH8595AS 0 1970-01-01 SDH8595AS Brief Datasheet
