    SDH6984RC
    NON-ISOLATED LED LIGHTING DRIVE IC WITH BUILT-IN HIGH-VOLTAGE MOSFET, HIGH PFC AND HIGH CONSTANT CURRENT ACCURACY

        SDH6984RC is designed for non-isolated LED driving with floating Buck topology, built-in HV power MOSFET and depletion mode MOSFET are available. With this structure, inductor current is sensed and closed-loop is formed with the internal error amplifier for high constant current accuracy and high input/output regulation rate. Also, high PF in full range is available as its own PFC control. Boundary Conduction mode is adopted for decreasing switching loss and improving the conversion efficiency.

        SDH6984RC can realize high power factor without any external integral capacitor.

    Furthermore, SDH6984RC has a built-in VCC regulator and a high-voltage power supply controller, which is able to supply power to VCC capacitor in a certain VCC range without any peripheral power supply or HV startup circuit, saving the system cost and area.

        SDH6984RC integrates various protections, such as output open circuit protection, output short circuit protection, cycle-by-cycle over current protection, and over temperature protection.

        SDH6984RC has ultra low start-up current and operating current, is able to high effectively drive highlight LED in full voltage input range.


    Main feature

    • Proprietary constant control method (Patent)

    • High power factor without any external compensation capacitor (Patent)

    • Built-in high-voltage power supply

    • Built-in VCC regulator

    • Built-in HV power MOSFET and depletion mode MOSFET

    • Constant current with high accuracy for LED (<±3%)

    • PF>0.9 in full voltage input range

    • Boundary-Conduction mode

    • LED short circuit protection

    • LED open circuit protection

    • VCC under voltage protection

    • Over temperature protection

    • Over current protection

    • Internal current reduction in high temperature condition


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDH6984RC SOP-8-225-1.27 69 Halogen free Tube
    SDH6984RCTR SOP-8-225-1.27 69 Halogen free Tape&Reel

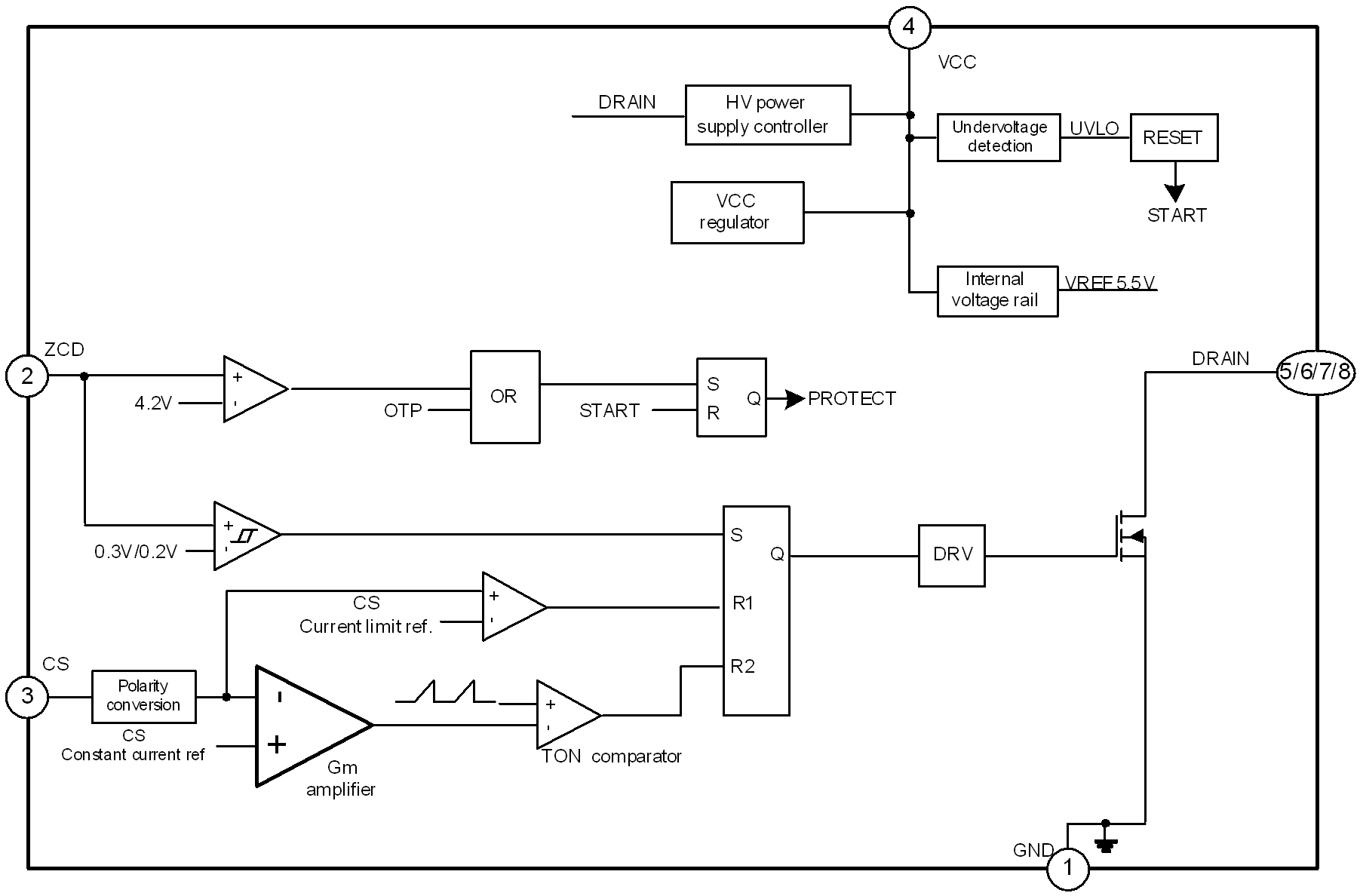

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SDH6984RC 0 1970-01-01 SDH6984RC Brief Datasheet
