SD6800BC
SINGLE STAGE PRIMARY SIDE REGULATION PFC CONTROLLER FOR LED DRIVER

    The SD6800BC is a single stage primary side regulation (PSR) power factor correction (PFC) controller, specially designed for LED driver.

    The Device adopts constant on time operation to achieve high power factor.

    The SD6800BC provides accurate constant current control and operates in boundary conduction mode (BCM) with high efficiency.

    The Device adopts primary side regulation eliminating the opto-couple, secondary feedback control and loop compensation for reducing design and cost.

    The SD6800BC provides completed protections such as short LED protection, open LED protection and over temperature protection, etc.


Main feature

  • PSR Flyback topology

  • Boundary Conduction Mode

  • Low start currentw  Leading edge blanking

  • Constant on-time control

  • VCC over voltage protection

  • VCC under voltage lockout

  • Over temperature protection

  • Cycle by cycle current limiting

  • Peak current compensation

  • Short LED protection and Open LED protection


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SD6800BC SOP-8-225-1.27 Z8C Halogen free Tube
SD6800BCTR SOP-8-225-1.27 Z8C Halogen free Tape & reel

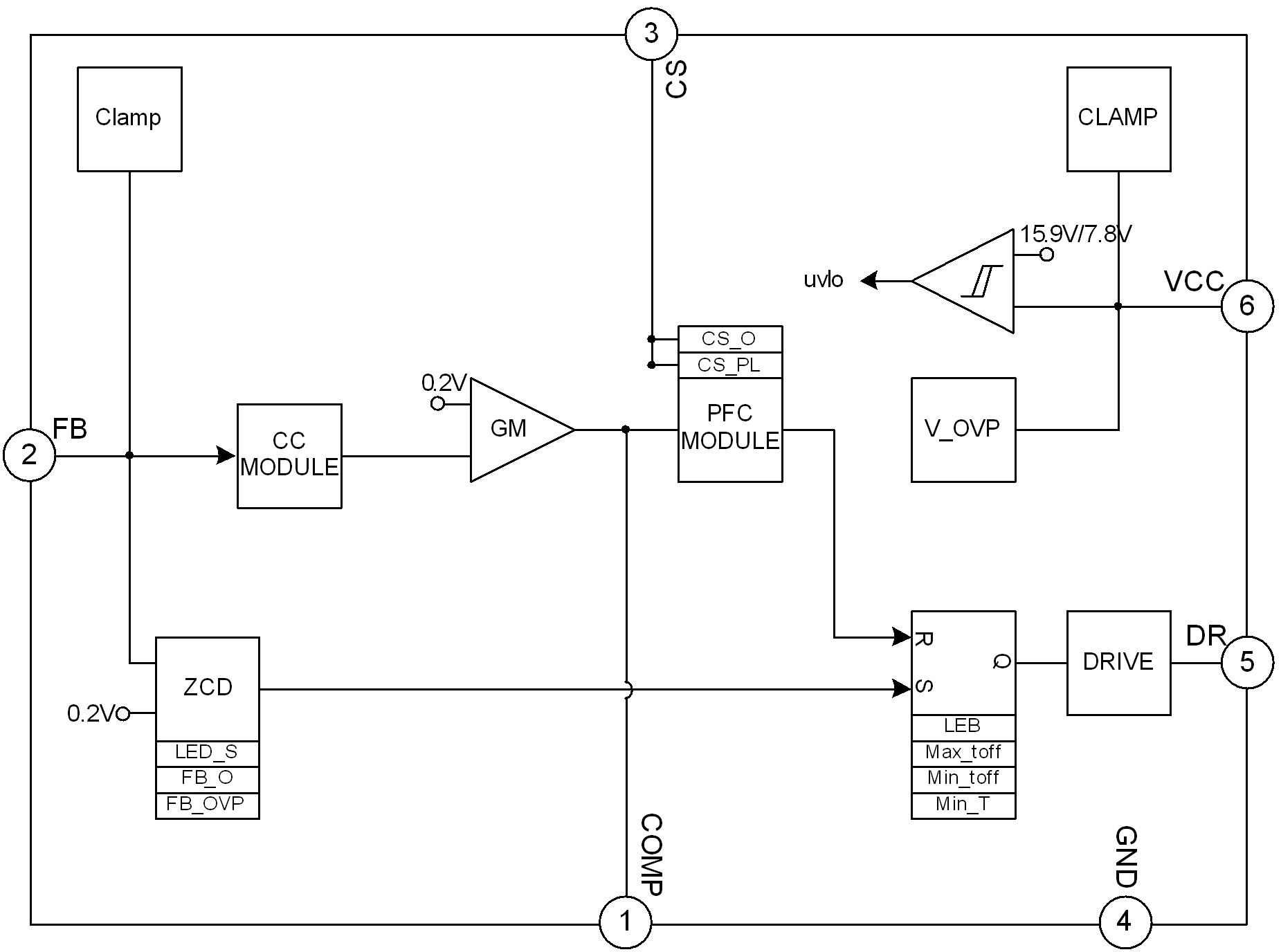

Block Diagram
